Hybrid Services Reveal 2022 Availability For The New Mimaki JFX600-2513 Production Flatbed LED UV Printer
Image Courtesy of Mimaki
Hybrid Services of Crewe announce that the new ground-breaking LED UV flatbed from Mimaki will become available in the UK in early 2022.

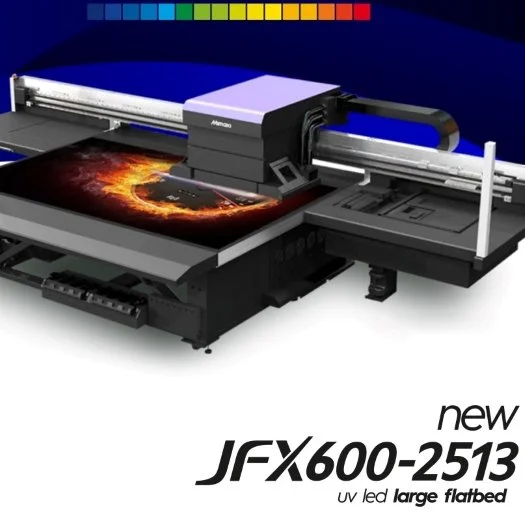

The innovative Mimaki JFX600-2513, is a true flatbed printer, with which Mimaki shows its commitment to the industrial printing industry.
Equipped with state-of-the-art technology and functionality, it will exceed customer demands.
With production speeds of up to 200m²/h in a print area of 210 x 130 cm.
With a Mimaki JFX600 – 2512 printer it is possible to print on a wide range of materials, such as: Acrylics, Polycarbonates, PVC, Glass, Aluminum, Metal, Polyesters, Foam Board, Styrene, Wood and Piedra.
High image quality is obtained by a resolution of up to 1200 x 1200 dpi and variable point sizes.
With more heads,media capabilities and production capacity,this ground-breaking printer offer significant opportunities for sign makers and display graphics companies.
With an 8 x 4 flatbed capable of taking media up to 60mm thick,the new high end Mimaki is geared to volume production whilst also offering creative options such as 2.5D textured print,opaque white and clear inks.
Amazingly High Productivity: Up To 330% Higher Speed
330% faster than the previous model (JFX500-2131) by installing significantly more printheads.
The great increase in productivity allows for quick delivery of large format prints.
Rich Color Expression: 6 Color Inks, Including Light Colors
Six colors, including Lc and Lm, are available for rich color expression.
There are a wide variety of UV ink types to choose from to suit your application.
Every ink has gained the “GREENGUARD Gold” certification by meeting VOC (Volatile organic compound) emissions requirements, the most stringent standard in the world, from UL, a U.S. third-party safety science organization, and is recognized for its environmental safety.
*6-color profiles will be available after March 2022.
MPC (Mimaki Printer Controller) using a graphical user interface
It is a new software used for operation in the touch screen monitor connected to the printer.
All operations are visually organized by item and can be performed on the MPC screen, including setting print conditions, checking work/printer status and work history, and checking maintenance instructions.
Designed With Usability In Mind: Table Size & Vacuum Table, 60mm Thick Media Support
The table size of 2,500 × 1,300 mm nicely fits commonly used 4' × 8' media*.
The vacuum area to hold media is divided into two sections in the X direction of the table, and can be adjusted to the media size you use by opening/closing valves.
Besides the operation panel, a foot switch can be used to turn the vacuum on and off.
Direct printing on media as thick as 60 mm allows you to expand the range of materials.
You can also print on standard 50 mm thickness channel boards with aluminum composite board, PVC board, etc. laminated on the front and back (real 52-53 mm thickness)!
Incorporation Of Reliable Mimaki Technology
Mimaki's image quality control technology ensures more beautiful prints
Waveform control: Thanks to Mimaki's unique advanced ink droplet ejection control, droplets with high circularity can be ejected to make them accurately land on the media. This enables sharp expression of text, ruled lines, and edges.
MAPS4 (Mimaki Advanced Pass System 4): Banding (horizontal stripes), uneven color, and glossy streaks can be reduced to realize smooth prints by printing pass boundaries fading in gradation.
Variable dots: Three different ink dot sizes are used to enable high-quality prints with reduced graininess.
Reliable functions for stable operation
"NCU & NRS" not to stop work
NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue their operation without waiting for service representative.
Mimaki Circulation Technology (MCT) minimizes downtime
An ink circulation mechanism is provided in the ink tank and ink path. It circulates white ink periodically to prevent nozzle trouble due to deposited ink pigments and to stabilize printing performance.
In addition, MCT contributes to reduction of ink waste, thereby supporting environmentally and economically friendly applications.
*MCT works only with white ink.
Variable Expression To Add More Value To Prints
"2.5D Texture Maker" that enables easy creation of smooth semi-stereoscopic 2.5D data
Multi-layered gradation data can be created by “2.5D Texture Maker”, a function of the bundled RIP “RasterLink7”.
Smooth expression of bumpy textures can be achieved using multiple layers of UV ink. This allows you to create realistic and eye-catching graphics.
*Available in the future
White Ink and Clear Ink
Printing together with high-concentration white ink as the base color on transparent or deep-color media makes full-color images more vivid.
Clear ink printing enhances decorative effects such as mat, gloss and texture.
Primer
It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
Expanding the range of material selection, high value added applications can be produced.
As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
Patent number / JPN: 5817059 USA: US9,132,685 B2
Connected Digital Printing
Supports MDL (Mimaki Device Language) commands to automate the printing process
Mimaki offers command sets to enable customer production systems and peripheral devices to control our printers.
Through applying these commands, the position and height of the media setting table, the start of printing, and other printer operations can be controlled.
It also allows for the acquisition of remaining ink level and error information from the printer.
Regarding the MDL command, customers are able to build systems optimized to their individual applications by developing the necessary software using technical information (SDK) provided from Mimaki.
The system will contribute to automation and labor saving in customers business.
*Scheduled for December 2021
